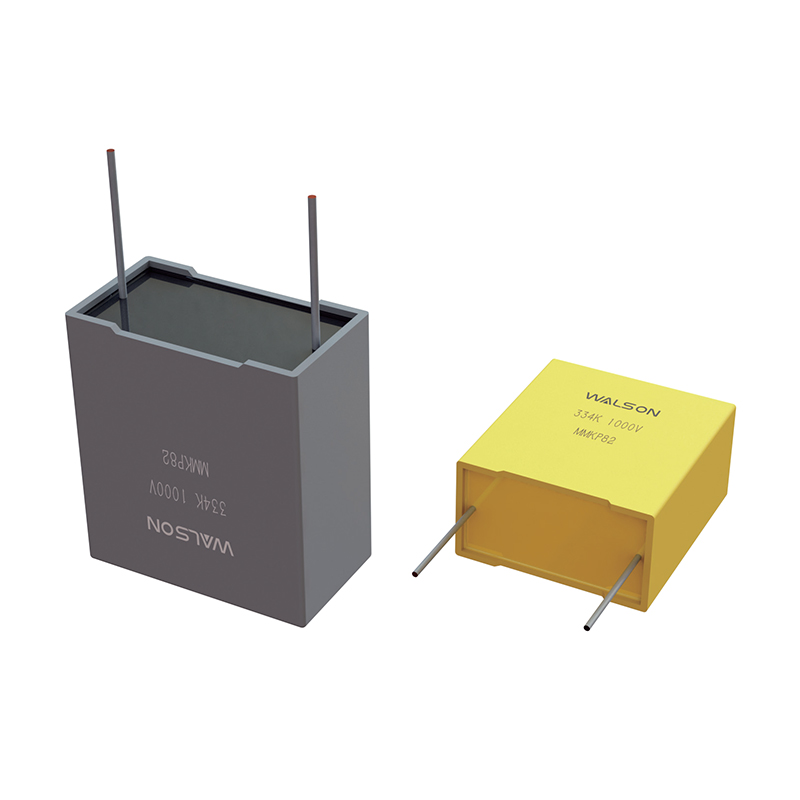

MMKP82 series Duplex Metallized Polypropylene Film Capacitor (Box-Type)

Features:

Duplex postesque electriformes, polypropylene cinematographica dielectric

Minimum damnum et parvum inhaerens temperatus oritur

Temperatus negativus coefficiens capacitatis

Repugnantia facultates flammae excellens

Cubits

Reference Standard	GB/T 10190(IEC60384-16)
Categoria climatica	40/105/56
Rated Temperature	85C.or U(dc): 75℃ pro U(ac
Temperature Range operating	-40℃-105℃
Ratum Voltage	250V, 400V, 630V, 1000V, 1600V, 2000V
Capacitance Range	0.00022μF~3.9μF
Facultas Tolerantia	±2%(G),±3%(H),±5%(J),±10%(K),±20%(M)
Probatur intentione	1.6U _R (5s)
Dissipatio Factor	≤10×10 ^-⁴ (1kHz,20℃)
Nulla Resistentia	R≥15000MQ,C _N ≤0.33μF (20℃,100V,1min) RC _N ≥5000,C _N >0.33μF
Maximum pulsum Tempus (dV/dt): Si intentionem laboris(U) inferius est quam voltatio aestimatum (U _R ) capacitas altiore dV/dt. In hoc causa, maximum dV/dt obtinetur multiplicando valorem noxiorum cum U _R /U	U _R (V)	dV/dt(V/μs)
	U _R (V)	P=7.5	P=0.0	P=15.0	P=22.5	P=27.5
	250	1200	1000	550	250	200
	400	1800	1500	900	500	300
	630	3200	3200	2500	1500	900
	1000	6000	6000	3300	2100	1000
	1600			6000	3000	2000
	2000			10000	5000	2200

Dimensiones(mm)

	C N (μ F)	W	H	T	P	d*
	C N (μ F)	W	H	T	P	d*
250Vdc(180Vac)	0.0068	10.5	9	4	7.5	0.6
	0.0082	10.5	9	4	7.5	0.6
	0.01	10.5	9	4	7.5	0.6
	0.012	10.5	9	4	7.5	0.6
	0.015	10.5	9	4	7.5	0.6
	0.018	10.5	9	4	7.5	0.6
	0.022	10.5	9	4	7.5	0.6
	0.027	10.5	11	5	7.5	0.6
	0.033	10.5	11	5	7.5	0.6
	0.039	10.5	12	6	7.5	0.6
	0.047	10.5	12	6	7.5	0.6
	0.027	13	9	4	10	0.6
	0.033	13	9	4	10	0.6
	0.039	13	9	4	10	0.6
	0.047	13	11	5	10	0.6
	0.056	13	11	5	10	0.6
	0.068	13	12	6	10	0.6
	0.082	13	12	6	10	0.6
	0.068	17.5	11	5	15	0.8
	0.082	17.5	11	5	15	0.8
	0.1	17.5	11	5	15	0.8
	0.12	17.5	12	6	15	0.8
	0.15	17.5	12	6	15	0.8
	0.18	17.5	13.5	7.5	15	0.8
	0.22	17.5	13.5	7.5	15	0.8
	0.27	17.5	14.5	8.5	15	0.8
	0.33	17.5	16	10	15	0.8
	0.39	17.5	16	10	15	0.8
	0.22	26.5	15	6	22.5	0.8
	0.27	26.5	15	6	22.5	0.8
	0.33	26.5	15	6	22.5	0.8
	0.39	26.5	16	7	22.5	0.8
	0.47	26.5	16	7	22.5	0.8
	0.56	26.5	17	8.5	22.5	0.8
	0.68	26.5	18.5	10	22.5	0.8
	0.82	26.5	18.5	10	22.5	0.8
	1	26.5	22	12	22.5	0.8
	0.82	32	18	9	27.5	0.8
	1	32	20	11	27.5	0.8
	1.2	32	20	11	27.5	0.8
	1.5	32	22	13	27.5	0.8
	1.8	32	24.5	15	27.5	0.8
	2.2	32	24.5	15	27.5	0.8
	2.7	32	33	18	27.5	0.8
	3.3	32	33	18	27.5	0.8
	3.9	32	33	18	27.5	0.8
400Vdc(250Vac)	0.0027	10.5	9	4	7.5	0.6
	0.0033	10.5	9	4	7.5	0.6
	0.0039	10.5	9	4	7.5	0.6
	0.0047	10.5	9	4	7.5	0.6
	0.0056	10.5	9	4	7.5	0.6
	0.0068	10.5	9	4	7.5	0.6
	0.0082	10.5	9	4	7.5	0.6
	0.01	10.5	9	4	7.5	0.6
	0.012	10.5	9	4	7.5	0.6
	0.015	10.5	11	5	7.5	0.6
	0.018	10.5	11	5	7.5	0.6
	0.022	10.5	12	6	7.5	0.6
	0.027	10.5	12	6	7.5	0.6
	0.01	13	9	4	10	0.6
	0.012	13	9	4	10	0.6
	0.015	13	9	4	10	0.6
	0.018	13	9	4	10	0.6
	0.022	13	9	4	10	0.6
	0.027	13	11	5	10	0.6
	0.033	13	11	5	10	0.6
	0.039	13	12	6	10	0.6
	0.047	13	12	6	10	0.6
	0.033	17.5	11	5	15	0.8
	0.039	17.5	11	5	15	0.8
	0.047	17.5	11	5	15	0.8
	0.056	17.5	11	5	15	0.8
	0.068	17.5	12	6	15	0.8
	0.082	17.5	12	6	15	0.8
	0.1	17.5	13.5	7.5	15	0.8
	0.12	17.5	13.5	7.5	15	0.8
	0.15	17.5	14.5	8.5	15	0.8
	0.18	17.5	16	10	15	0.8
	0.22	17.5	16	10	15	0.8
	0.27	17.5	19	11	15	0.8
	0.12	26.5	15	6	22.5	0.8
	0.15	26.5	15	6	22.5	0.8
	0.18	26.5	15	6	22.5	0.8
	0.22	26.5	16	7	22.5	0.8
	0.27	26.5	17	8.5	22.5	0.8
	0.33	26.5	17	8.5	22.5	0.8
	0.39	26.5	18.5	10	22.5	0.8
	0.47	26.5	18.5	10	22.5	0.8
	0.56	26.5	22	12	22.5	0.8
	0.68	26.5	22	12	22.5	0.8
	0.39	32	18	9	27.5	0.8
	0.47	32	18	9	27.5	0.8
	0.56	32	20	11	27.5	0.8
	0.68	32	20	11	27.5	0.8
	0.82	32	22	13	27.5	0.8
	1	32	24.5	15	27.5	0.8
	1.2	32	24.5	15	27.5	0.8
	1.5	32	33	18	27.5	0.8
	1.8	32	33	18	27.5	0.8
630Vdc(400Vac)	0.00068	10.5	9	4	7.5	0.6
	0.00082	10.5	9	4	7.5	0.6
	0.001	10.5	9	4	7.5	0.6
	0.0012	10.5	9	4	7.5	0.6
	0.0015	10.5	9	4	7.5	0.6
	0.0018	10.5	9	4	7.5	0.6
	0.0022	10.5	9	4	7.5	0.6
	0.0027	10.5	9	4	7.5	0.6
	0.0033	10.5	9	4	7.5	0.6
	0.0039	10.5	9	4	7.5	0.6
	0.0047	10.5	9	4	7.5	0.6
	0.0056	10.5	9	4	7.5	0.6
	0.0068	10.5	11	5	7.5	0.6
	0.0082	10.5	11	5	7.5	0.6
	0.01	10.5	12	6	7.5	0.6
	0.012	10.5	12	6	7.5	0.6
	0.0039	13	9	4	10	0.6
	0.0047	13	9	4	10	0.6
	0.0056	13	9	4	10	0.6
	0.0068	13	9	4	10	0.6
	0.0082	13	9	4	10	0.6
	0.01	13	11	5	10	0.6
	0.012	13	11	5	10	0.6
	0.015	13	12	6	10	0.6
	0.018	13	12	6	10	0.6
	0.01	18	11	5	15	0.8
	0.012	18	11	5	15	0.8
	0.015	18	11	5	15	0.8
	0.018	18	11	5	15	0.8
	0.022	18	11	5	15	0.8
	0.027	18	11	5	15	0.8
	0.033	18	12	6	15	0.8
630Vdc(400Vac)	0.039	18	12	6	15	0.8
	0.047	18	12	6	15	0.8
	0.056	18	13.5	7.5	15	0.8
	0.068	18	14.5	8.5	15	0.8
	0.082	18	14.5	8.5	15	0.8
	0.1	18	16	10	15	0.8
	0.12	18	19	11	15	0.8
	0.047	26.5	15	6	22.5	0.8
	0.056	26.5	15	6	22.5	0.8
	0.068	26.5	15	6	22.5	0.8
	0.082	26.5	15	6	22.5	0.8
	0.1	26.5	15	6	22.5	0.8
	0.12	26.5	16	7	22.5	0.8
	0.15	26.5	17	8.5	22.5	0.8
	0.18	26.5	17	8.5	22.5	0.8
	0.22	26.5	18.5	10	22.5	0.8
	0.27	26.5	22	12	22.5	0.8
	0.33	26.5	22	12	22.5	0.8
	0.39	26.5	22	12	22.5	0.8
	0.15	32	18	9	27.5	0.8
	0.18	32	18	9	27.5	0.8
	0.22	32	18	9	27.5	0.8
	0.27	32	18	9	27.5	0.8
	0.33	32	20	11	27.5	0.8
	0.39	32	20	11	27.5	0.8
	0.47	32	22	13	27.5	0.8
	0.56	32	22	13	27.5	0.8
	0.68	32	24.5	15	27.5	0.8
	0.82	32	28	14	27.5	0.8
	1	32	33	18	27.5	0.8
	1.2	32	33	18	27.5	0.8
1000Vdc(600Vac)	0.00047	10.5	9	4	7.5	0.6
	0.00056	10.5	9	4	7.5	0.6
	0.00068	10.5	9	4	7.5	0.6
	0.00082	10.5	9	4	7.5	0.6
	0.001	10.5	9	4	7.5	0.6
	0.0012	10.5	11	5	7.5	0.6
	0.0015	10.5	11	5	7.5	0.6
	0.0018	10.5	11	5	7.5	0.6
	0.0022	10.5	11	5	7.5	0.6
	0.0027	10.5	12	6	7.5	0.6
	0.0033	10.5	12	6	7.5	0.6
	0.001	13	9	4	10	0.6
	0.0012	13	9	4	10	0.6
	0.0015	13	9	4	10	0.6
	0.0018	13	9	4	10	0.6
	0.0022	13	9	4	10	0.6
	0.0027	13	9	4	10	0.6
	0.0033	13	9	4	10	0.6
	0.0039	13	11	5	10	0.6
	0.0047	13	11	5	10	0.6
	0.0056	13	12	6	10	0.6
	0.0068	13	12	6	10	0.6
	0.0082	18	11	5	15	0.8
	0.01	18	11	5	15	0.8
	0.012	18	11	5	15	0.8
	0.015	18	11	5	15	0.8
	0.018	18	13.5	7.5	15	0.8
	0.022	18	13.5	7.5	15	0.8
	0.027	18	14.5	8.5	15	0.8
	0.033	18	14.5	8.5	15	0.8
	0.039	18	16	10	15	0.8
	0.047	18	19	11	15	0.8
	0.027	26.5	15	6	22.5	0.8
	0.033	26.5	15	6	22.5	0.8
	0.039	26.5	15	6	22.5	0.8
	0.047	26.5	16	7	22.5	0.8
	0.056	26.5	16	7	22.5	0.8
	0.068	26.5	17	8.5	22.5	0.8
	0.082	26.5	18.5	10	22.5	0.8
	0.1	26.5	18.5	10	22.5	0.8
	0.12	26.5	22	12	22.5	0.8
	0.15	26.5	22	12	22.5	0.8
	0.1	32	18	9	27.5	0.8
	0.12	32	20	11	27.5	0.8
	0.15	32	20	11	27.5	0.8
	0.18	32	22	13	27.5	0.8
	0.22	32	22	13	27.5	0.8
	0.27	32	24.5	15	27.5	0.8
	0.33	32	28	14	27.5	0.8
	0.39	32	33	18	27.5	0.8
	0.47	32	33	18	27.5	0.8
1600Vdc(650Vac)	0.00068	18	11	5	15	0.8
	0.00082	18	11	5	15	0.8
	0.001	18	11	5	15	0.8
	0.0012	18	11	5	15	0.8
	0.0015	18	11	5	15	0.8
	0.0018	18	11	5	15	0.8
	0.0022	18	11	5	15	0.8
	0.0027	18	11	5	15	0.8
	0.0033	18	11	5	15	0.8
	0.0039	18	11	5	15	0.8
	0.0047	18	11	5	15	0.8
	0.0056	18	11	5	15	0.8
	0.0068	18	11	5	15	0.8
	0.0082	18	12	6	15	0.8
	0.01	18	12	6	15	0.8
	0.012	18	13.5	7.5	15	0.8
	0.015	18	13.5	7.5	15	0.8
	0.018	18	14.5	8.5	15	0.8
	0.022	18	14.5	8.5	15	0.8
	0.027	18	16	10	15	0.8
	0.033	18	19	11	15	0.8
	0.015	26.5	15	6	22.5	0.8
	0.018	26.5	15	6	22.5	0.8
	0.022	26.5	15	6	22.5	0.8
	0.027	26.5	15	6	22.5	0.8
	0.033	26.5	16	7	22.5	0.8
	0.039	26.5	17	8.5	22.5	0.8
	0.047	26.5	18.5	10	22.5	0.8
	0.056	26.5	18.5	10	22.5	0.8
	0.068	26.5	22	12	22.5	0.8
	0.082	26.5	22	12	22.5	0.8
	0.039	32	18	9	27.5	0.8
	0.047	32	18	9	27.5	0.8
	0.056	32	18	9	27.5	0.8
	0.068	32	18	9	27.5	0.8
	0.082	32	20	11	27.5	0.8
	0.1	32	20	11	27.5	0.8
	0.12	32	22	13	27.5	0.8
	0.15	32	24.5	15	27.5	0.8
	0.18	32	24.5	15	27.5	0.8
	0.22	32	33	18	27.5	0.8
	0.27	32	33	18	27.5	0.8
	0.33	32	33	18	27.5	0.8
2000Vdc(700Vac)	0.00022	18	11	5	15	0.8
	0.00027	18	11	5	15	0.8
	0.00033	18	11	5	15	0.8
	0.00039	18	11	5	15	0.8
	0.00047	18	11	5	15	0.8
	0.00056	18	11	5	15	0.8
	0.00068	18	11	5	15	0.8
	0.00082	18	11	5	15	0.8
	0.001	18	11	5	15	0.8
	0.0012	18	11	5	15	0.8
	0.0015	18	11	5	15	0.8
	0.0018	18	11	5	15	0.8
	0.0022	18	11	5	15	0.8
	0.0027	18	11	5	15	0.8
	0.0033	18	12	6	15	0.8
	0.0039	18	12	6	15	0.8
	0.0047	18	12	6	15	0.8
	0.0056	18	13.5	7.5	15	0.8
	0.0068	18	13.5	7.5	15	0.8
	0.0082	18	14.5	8.5	150	0.8
	0.01	18	16	10	15	0.8
	0.012	18	16	10	15	0.8
	0.015	18	19	11	15	0.8
	0.001	26.5	15	6	22.5	0.8
	0.0012	26.5	15	6	22.5	0.8
	0.0015	26.5	15	6	22.5	0.8
	0.0018	26.5	15	6	22.5	0.8
	0.0022	26.5	15	6	22.5	0.8
	0.0027	26.5	15	6	22.5	0.8
	0.0033	26.5	15	6	22.5	0.8
	0.0039	26.5	15	6	22.5	0.8
	0.0047	26.5	15	6	22.5	0.8
	0.0056	26.5	15	6	22.5	0.8
	0.0068	26.5	15	6	22.5	0.8
	0.0082	26.5	15	6	22.5	0.8
	0.01	26.5	15	6	22.5	0.8
	0.012	26.5	15	6	22.5	0.8
	0.015	26.5	16	7	22.5	0.8
	0.018	26.5	16	7	22.5	0.8
	0.022	26.5	17	8.5	22.5	0.8
	0.027	26.5	18.5	10	22.5	0.8
	0.033	26.5	18.5	10	22.5	0.8
	0.039	26.5	22	12	22.5	0.8
	0.047	26.5	22	12	22.5	0.8
	0.022	32	18	9	27.5	0.8
	0.027	32	18	9	27.5	0.8
	0.033	32	18	9	27.5	0.8
	0.039	32	20	11	27.5	0.8
	0.047	32	20	11	27.5	0.8
	0.056	32	22	13	27.5	0.8
	0.068	32	22	13	27.5	0.8
	0.082	32	24.5	15	27.5	0.8
	0.1	32	28	14	27.5	0.8
	0.12	32	33	18	27.5	0.8
	0.15	32	33	18	27.5	0.8
